BAHAMA SLOOP Specs
  • LOA---25' 2"
  • LWL---23' 1"
  • BEAM---9' 8"
  • DRAFT---2' 6"
  • BALLAST---2200 lbs. (Internal)
  • SAIL AREA---448 sq. ft.
  • DISPLACEMENT---7200 lbs.
  • DISPL/LENGTH RATIO---262
  • SA/DISPL RATIO---19.2
  • PRISMATIC COEFF---.552
  • CAPSIZE SCREENING FACTOR---2.00
  • TANKS--- Jerry cans or to suit

BAHAMA SLOOP
A centerboard sloop for wood construction
Brewer Design #270

This little sloop was a custom design for Tom Goodwin, an owner in the Bahamas, who provided very detailed sketches of the boat that he wanted. She was built by Covey Island Boatworks in Petit Riviere, Nova Scotia, Canada, a firm well known for very high quality wood yachts, both sail and power.

The general style is based on a traditional Bahama working sloop, the type of craft used for fishing and inter-island transport by many generations of islanders.

However the hull is finer forward and has more fullness aft, not unlike that of a Cape Cod catboat in some respects.


click drawing to see larger image

Too, she is of shallower draft than the Bahama "sharpshooter" shown in Chapelle's "American sailing Craft" and has a centerboard added to improve her weatherliness.

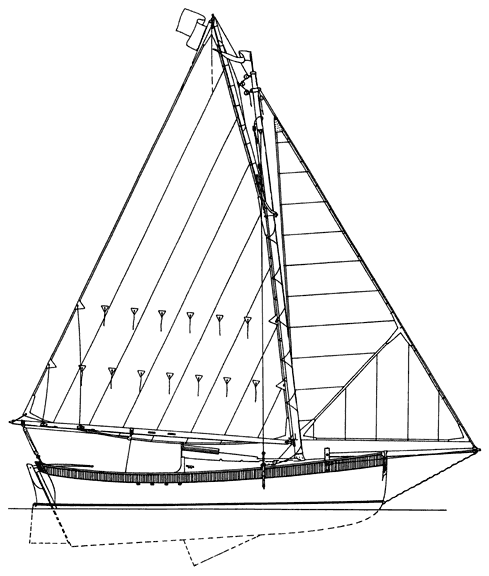

The rig also differs from the sharpshooter in having a jib set on a long bowsprit and a high peaked gaff main but, like most Bahama boats, she still features a big, loose footed mainsail. The sail area is certainly generous and she should slip along nicely in the lightest of airs.

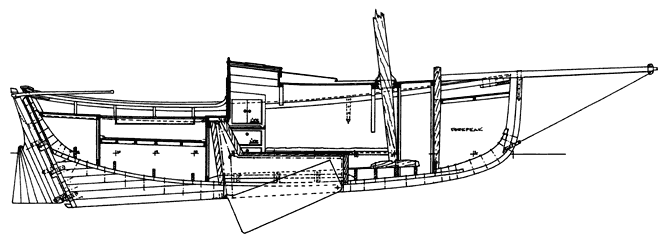

Construction is of strip planked fir, fiberglassed inside and out, with laminated keel and other members. Decks are plywood, laminated in three layers for strength.


click drawing to see larger image

The little yacht was designed as a daysailer so cabin accommodations are minimal and, as the owner did not want a W.C., I presume that L. Francis Herreshoff's favorite, a cedar bucket, will be utilized in the cockpit.


click drawing to see larger image

It would be quite easy to fit a head if desired, of course, by eliminating the quarterberth or by moving the starboard settee forward to make space.


click photo to see larger image

Though a minimal cruiser by modern standards, the Bahama Sloop is a daysailer that will attract envious glances wherever she sails. And I, for one, have cruised hundreds of miles in small boats that, by comparison, make this little Bahama 25 footer seem like a palace of luxury.



Study Plans: $35 US

Complete Plans: $295 US

Ordering Information

Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
