CAPE MAY Specs
LOA---44' 0" LWL---36' 6" BEAM---13' 3" DRAFT---5' 10" BALLAST---10000 lbs. SAIL AREA---952 sq. ft. DISPLACEMENT---26600 lbs. DISPL/LENGTH RATIO---244.2 SA/DISPL RATIO---17.0 PRISMATIC COEFF---.565 CAPSIZE SCREENING FACTOR---1.78 TANKS---160 gals. Fuel, 200 gals, Water

CAPE MAY
A 44' Auxiliary Cutter for fiberglass construction
Brewer Design #148

The CAPE MAY is a custom design for a knowledgeable owner who planned to circumnavigate the globe with his family. Construction is of Airex cored fiberglass and uses a thicker than usual core plus foam in all accessible areas to provide full flotation in an emergency.

The hull features good deadrise to give an easy motion in a seaway, along with a well developed bustle to permit high speeds to be maintained in ocean breezes. The long fin provides for ease of haulout and the large skeg/rudder will assure directional stability and an easy helm. The displacement is moderate but still sufficient to assure safety in extreme conditions and, along with a good ballast ratio, a stiff hull. This is no lightweight!

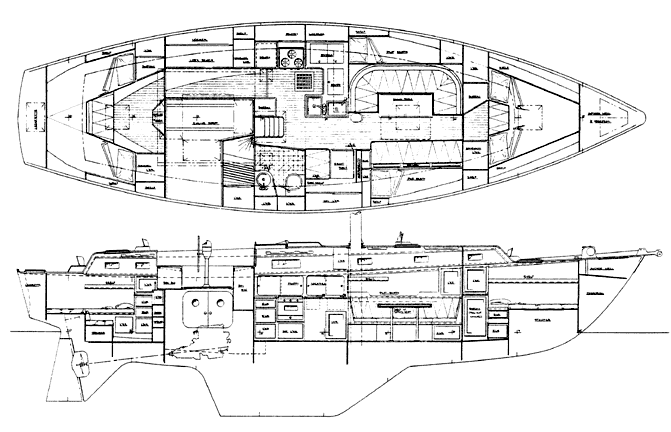

The accommodations provide 6 permanent berths in 3 separate cabins and there is good stowage throughout. The amenities include a large galley for the chef, a spacious nav area, a roomy head with separate stall shower and a work bench in the passage aft.

The engine room is of good size with ample space for both the 40-60 hp diesel and an auxiliary gen set.

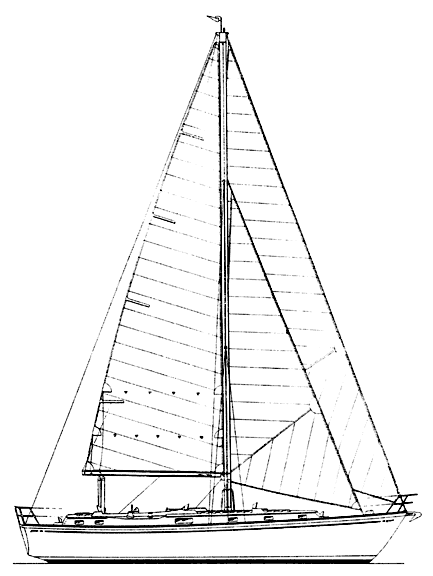

The tall cutter rig is easily handled. It spreads ample sail area to move her in a light breeze yet can be snugged down with a storm jib and trisail for gale conditions when necessary. The mast is keel stepped and strongly stayed with double spreaders and intermediate backstays that can be set up as running backstays if desired.

In sum, the CAPE MAY is a world class cruiser that provides both safety and comfort well beyond that of the average vessel of her size.

Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
