BLUE HILL Specs
  • LOA---27' 3"
  • LWL---25' 0"
  • BEAM---9' 1"
  • DRAFT---2' 4"
  • DISPLACEMENT---5700 lbs.
  • DISPL/LENGTH RATIO---163
  • PRISMATIC COEFF---.663
  • TANKS:
  • FUEL---60 gals, WATER-- to suit

BLUE HILL
A 27' Double Ended Motor Yacht
Brewer Design #41

BLUE HILL provides a design suitable for a wide number of uses; day cruiser, weekender, sport fishing, or utility. Her hull form is based on a very successful 20 footer and ensures excellent rough water ability at both low and high speeds. The double ended hull form is particularly desirable for running breaking inlets or fishing where surf and seas pose problems to the normal wide transom boat.

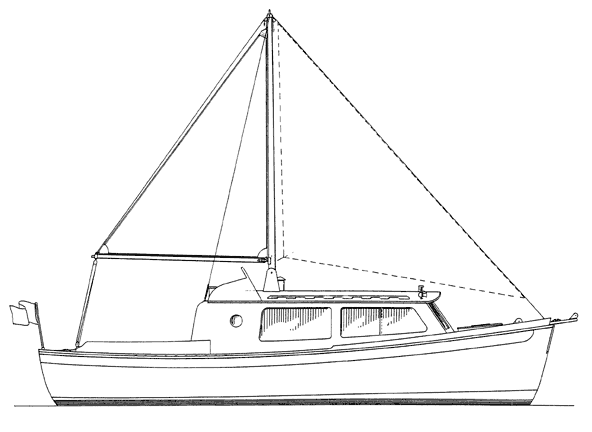

new BLUE HILL
click drawing to see larger image

Construction is of fir or cedar strip planking for simplicity of building and may be FRP covered for reduced maintenance and added strength if desired. Framing is on bulkheads and the keel is laminated to simplify construction and provide extra longitudinal strength.

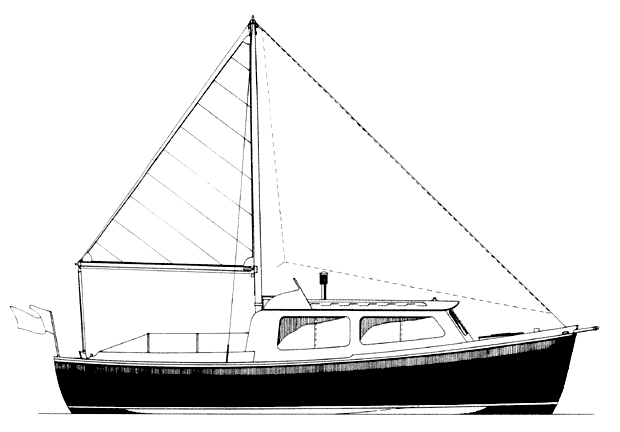

original  BLUE HILL
click drawing to see larger image

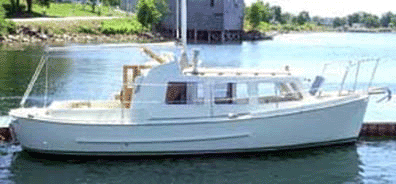

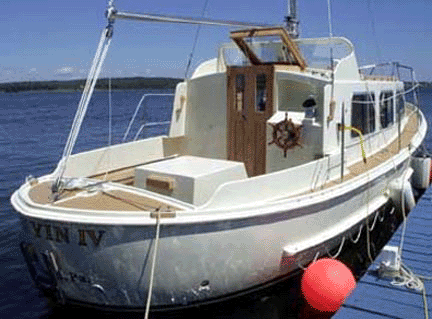

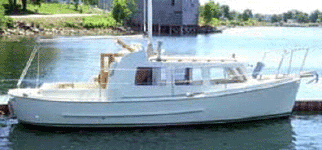

The interior provides 2 lower and 2 upper berths in the cabin with a toilet space forward and a handy galley space aft. There is standing headroom in the cabin with an inside helm.  There is also An outside steering station for those happy days when you are out there trolling for the big ones. An alternate interior with a longer cabin, larger galley and enclosed head was designed for a lady who had her boat built at Covey Island Boat works in Nova Scotia, Canada.  Both plans are included in the package.

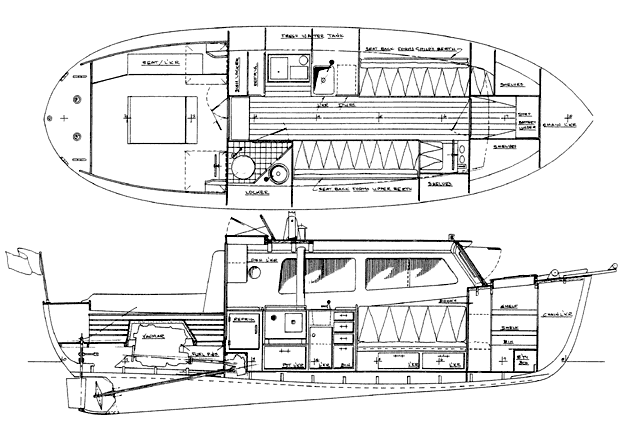

new BLUE HILL
click drawing to see larger image

Power is a single gas or diesel engine to 200 hp to provide speeds of 20 knots or better.

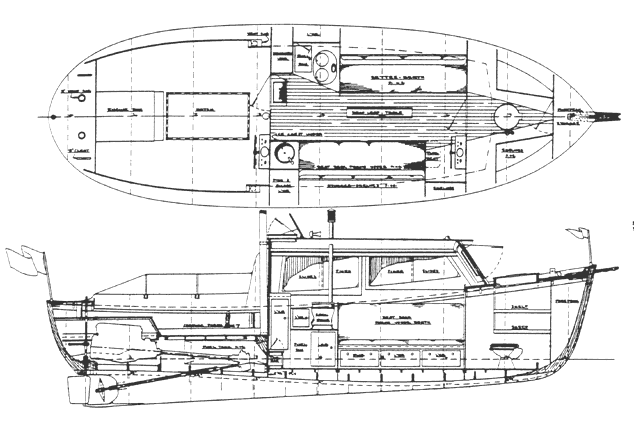

original  BLUE HILL
click drawing to see larger image

A vee drive keeps the engine aft and the noise level low in the cabin.

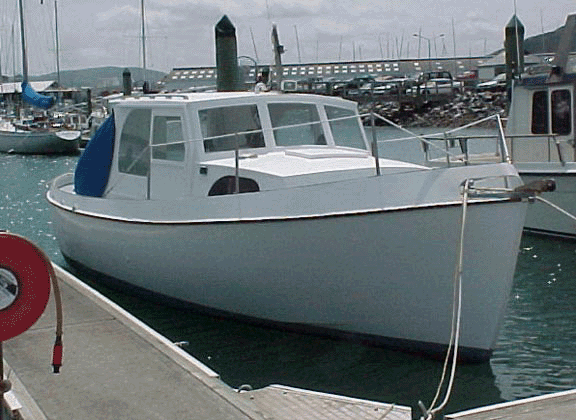

click photos to see larger image



click photo to see larger image

BLUE HILL is definitely an all weather motor boat that will take you where you want to go, and bring you back in comfort and safety.



Study Plans: $60 US

Complete Plans: $395 US

Ordering Information

Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
